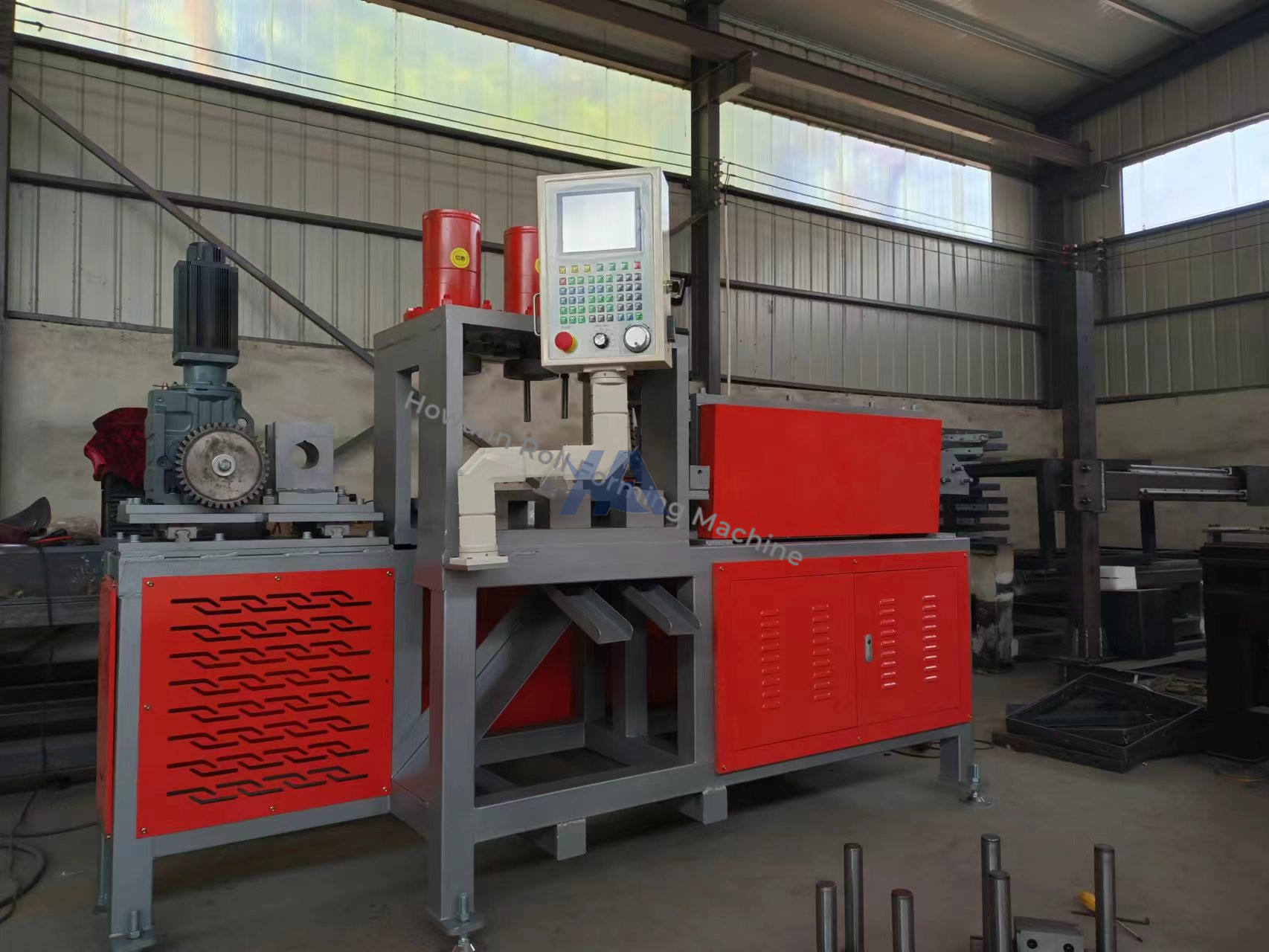

Howann Model 60-6 High-Precision Automatic Pipe Clamp Making Machine with 8-Station Gear Transmission and Smart PLC Control

Engineered by Howann, this heavy-duty Pipe Clamp Making Machine delivers an end-to-end automated manufacturing solution for structural pipe clamps, saddle brackets, cable cleats, and industrial metal hoops. Designed to process stainless steel and carbon steel flat strip stock ranging from 30 mm to 100 mm in width and up to 3.5 mm in thickness, this integrated line combines uncoiling, precision leveling, hydraulic hole punching, multi-pass forming, and automated cut-off into a seamless automated line.

The Howann production system utilizes an interactive PLC sequence memory controller. During setup, operators can adjust axes manually to calibrate trial bends; the smart control system logs these motion steps into internal program memory for effortless one-key execution on subsequent mass-production runs.

• Continuous 5-Stage Automation: Merges uncoiling, 7-roller straightening, hydraulic punching, 8-station gear forming, and shear cutting into one uninterrupted operation.
• Smart Motion-Recording PLC: Howann's specialized control memory allows operators to program complex bending steps by recording manual jog movements directly.
• 4-Point Independent Leveling: Powered 3 kW straightener features 7 precision rollers with 4-point tuning to completely eliminate metal coil curvature before punching.
• Rigid 8-Station Gear Transmission: Heavy-duty mechanical gears across all 8 forming stands deliver constant torque output for accurate bends on thick flat bars.
• Automated Batch Counter: Preset piece counter automatically pauses operation or signals operators once desired output targets are achieved.

• Motorized Strip Uncoiling & Leveling: Feeds coiled flat bar smoothly through 7 precision rollers at speeds up to 16 m/min without surface marking.
• Integrated Multi-Hole Punching: Pierces mounting holes, slots, and stiffening ribs with clean edges prior to final profile bending.
• Progressive 8-Station Bending: Shapes flat bar stock through 8 forming passes into smooth circular arcs, U-channels, or custom multi-angle brackets.
• Burr-Free Shearing: Synchronized shear blade severs completed clamps neatly to precise target lengths.

• Plumbing & Mechanical Supports: Heavy-duty pipe saddles, riser clamps, split-ring hangers, and U-shaped brackets.
• HVAC & Ductwork Assemblies: Duct suspension straps, circular duct hoops, and structural mounting clips.
• Electrical & Telecommunication: Cable tray hangers, conduit straps, and utility pole mounting brackets.
• General Hardware Fabrication: Container door hinges, barrel hoops, and custom structural steel strap fabrications.

• Custom Form Tooling Sets: Tailor-made roller profiles developed to match your specific part drawings or samples.
• Voltage Adaptation: Configurable for 220V, 380V, 415V, or 440V (3-phase power grids, 50/60 Hz).
• Custom Finish & Logo: Custom machine color scheme, brand logo placement, and export-grade wooden crate packaging.
